About Us:
1. More than 30Years --Zhejiang Junquan Automation Co., Ltd is built on 1985;
2. More than 20Years--Juanquan has been working on e xploring products for more than twenty years ;
3. Two producting base--Junquan have two producting base in Zhejiang Yueqing and Jiaxing;
4. 16000 square meters--The total area of Junquan is 16000 square maters;
5. All over the world--Junqan products have found ready markets in more than 50 countries and regions, such as America, Europe, MID-East, Southeast Asia, Africa etc.
6. Advantages--Junquan products With high precision and working speed and comprehensive in functions;
7. Honors --Junquan products have been listed into the National Torch Program, National Innovation Fund Program, has won several prizes for national, provincial and vivic level respectively Science and Technology;
8. "Live for quality and efficiency" --Junquan Products' target;
9. One year--Junquan products have one year warranty;
10. Certificates--CE,ISO9001.

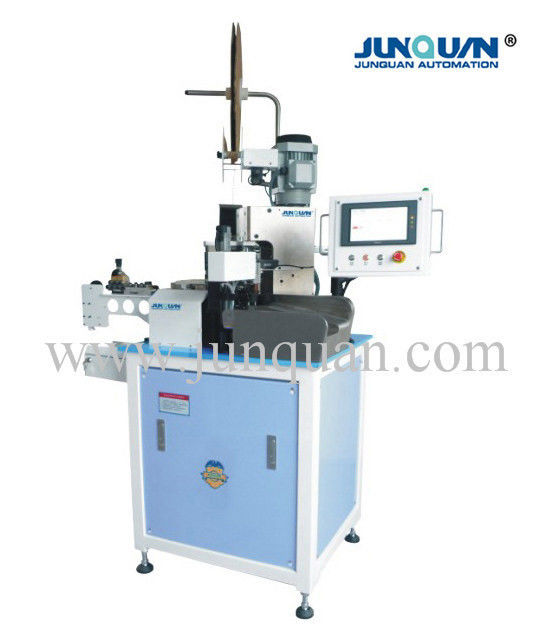

JQ-5 Full Automatic Terminal Crimping Machine
1) Ultra short conversion times, additional applications;
2) with its third processing station and state of the art control software, you are assured maximum flexibility and an even more efficient way of meeting your wire processing needs.
3) Fully automatic swivel arm crimping machines for high speed wire processing
4) High productivity, short changeover times, user-friendly operation and a wide range of processing capabilities from cutting, stripping to crimping
Two -ends stripping, and one end crimping
5) one-year warranty, full-life service
6) CE Approved
| Model: | JQ-5 |
| Measurement: | W1200× D800× H1900mm |
| Weight: | 400KGS Gross |
| Power supply: | AC220V |
| Compressed air: | 3m3/h |
| Pneumatic connection: | 5~6 bar(73-87psi) |
| Press capacity: | 19600n(2.0ton)× 1set |
| Wire size: | 0.13-1.5mm2(AWG#16-26) |
| Wire draw-in speed: | 3m/s |
| Max cutting length: | 40--65000mm |
| Cutting accuracy: | L≤ 100mm± (0.5+L × 0.002) L> 100mm± (1.0+L× 0.002) |
| Stripping length: | No. 1: 0.1-15.0mm No. 2: 1.0-15.0mm |
Machine Packing :Outside Package, standard export wooden cases.
Our Services:
-Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models
to you.
---After Sale Service
Don't worry, we are here to help. JUNQUAN provides life time after sale support to our customers including operation guidance, parts replacement, maintenance support. Just
feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter
set-up for difficult-to process wires. JUNQUAN engineers are here for your assistance.
FAQ
---Is JUNQUAN a trading company ?
No, we are professional manufacturer of Wire Cutting Stripping Machine, Terminal
Crimp Machine, Wire Cutting Machine, Fully Automatic Terminal Crimp Machine
since 1985.
---Can JUNQUAN do OEM service ?
Yes, we are happy to provide OEM service to expand our market.
---About parts replacement and maintenance ?
JUNQUAN parts are free to change if there is worn-out within 1 year providing delivery fee paid. Technical support is available during your daily maintenance.
---About distributor or wholesale annual sales rebate?
JUNQUAN provides a very competitive rebate policy for our distributors. For more
information , please contact us.
---Quality certificates ,market entrance ticket ?
JUNQUAN machine got CE approval and will apply for more certificates in future
market demands.
---What is the basic business principle of JUNQUAN ?
Passion and integrity. We trust work passion can provide best service and products to
our customers and integrity the foundation of business.
