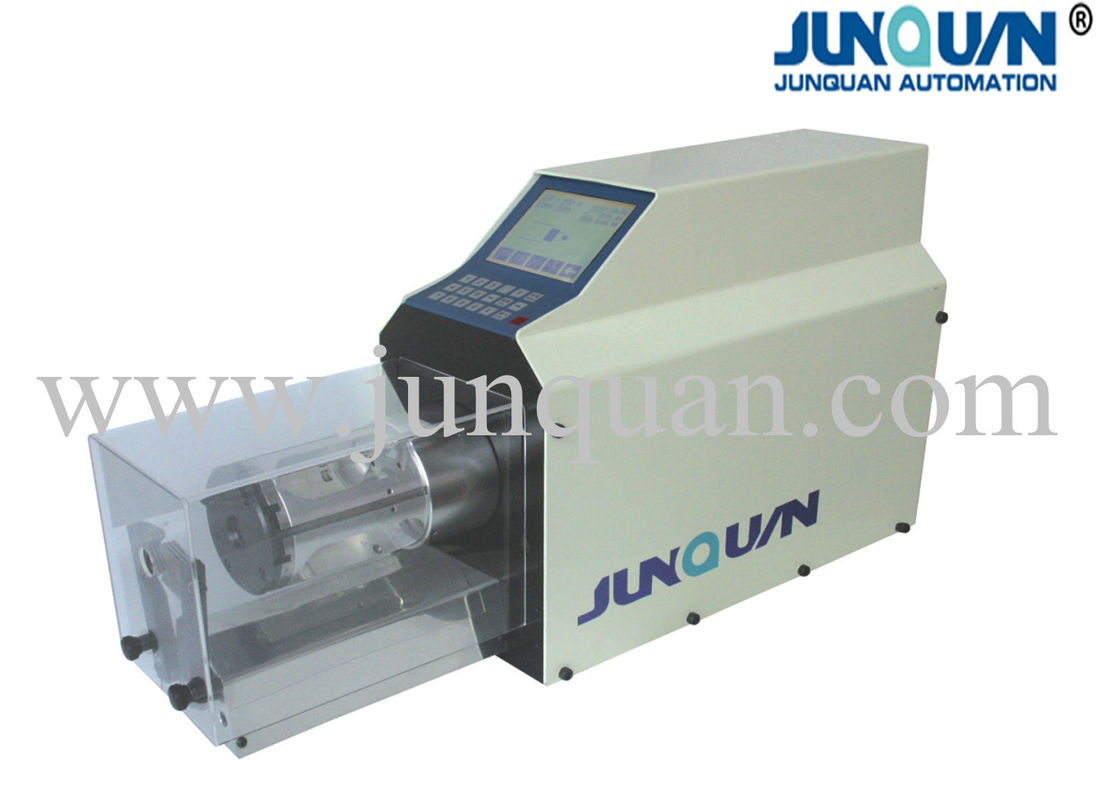

ZDBX-39R Coaxial cable stripping machine
This series offers a complete range of semi-and fully automatic machines for stripping coaxial, micro-coaxial, triaxial as well as semirigid cables. In these machines, the advanced rotary stripping and cutting concept ensures Junquan Automation's unique, repeatable stripping quality.
1) Combined with world-of-the art electronics
2) A user-friendly display and included software createan easy to use platform which offers maximum efficiency
3) Its processing capabilities make the ZDBX-39R a perfect match for a wide range of wires and cables such as coaxial and multi-conductor cable-even with very thin and tough or slightly out-of-round insulations
4) One-year warranty, full-life service
5) CE Approved
| Model: | ZDBX-39R |
| Max.cable diameter(O.D.): | 16mm |
| Stripping diameter increments: | 0.01mm(0.001") |
| Max.stripping length: | 95mm |
| Stripping length increments: | 0.01mm(0.001") |
| Max.stripping steps: | MAX.9 steps/1cycle |
| Wire clamping: | Motor driven with programmable clamping force |
| Cycle time: | ≥7SEC depending upon cable type and programming |
| Power supply: | 240VAC ; 50-60HZ |
| Fuse: | 3.15AT |
| Dimensions: | 705×196×356mm |
| Weight: | 27KGS |
Outside Package, standard export wooden cases.
