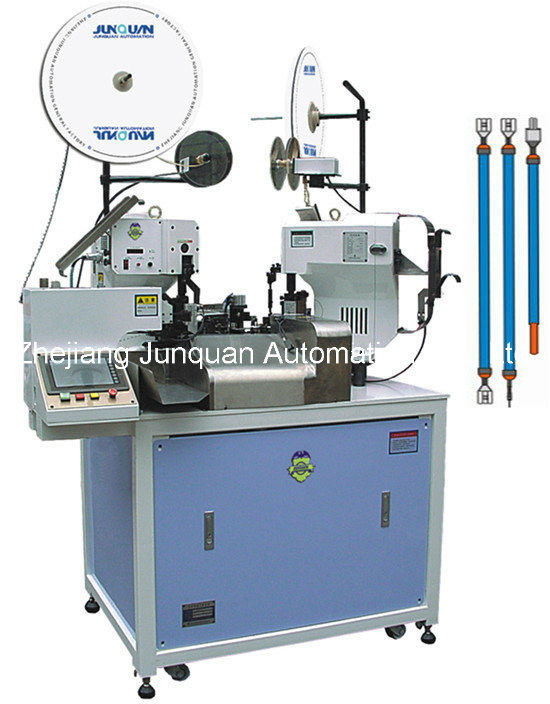

JQ-1 Full Automatic Terminal Crimping Machine (Both Ends)
1) Compact and high spped full automatic terminal crimping machine(JQ-1). High productivity and reiability using a positioning unit by servo motor and double drive wire feed unit. The outs tanding performance of the machine can be guaranteed by its;
2) Modularized edsign, proram logic control;
3) Structurized software design technology;
4) Advanced data-exchange scheme pre-feeder not required.
5) Combines simplicity and functionality with economy
6) Wide range of options and accessories available
7) Low maintenance costs due to use of standard components
8) One year warranty, full-life service
9) CE Approved.
Production capacity varies depends on the type of production.
| Model: | JQ-1 |
| Measurement: | W1300× D1480× H1450 |
| Weight: | 50KGS |
| Power supply: | AC220V |
| Compressed air: | 0.5mpa(5kgf/cm) |
| Press capacity: | 19600n(2.0ton)× 2sets low noise type |
| Wire size: | 0.05-2.0mm2(UL1007AWG#30-16) within O. D. 3.4mm |
| capacity: | 0.85sec/PCS(in case of min wire length) |
| Max cutting length: | 30--9999mm |
| Cutting accuracy: | L≤ 100mm± (0.5+L × 0.002) L> 100mm± (1.0+L× 0.002) |
| Stripping length: | No. 1: 1.0-10.0mm No. 2: 1.0-17.0mm |
| Cutting depth: | 2mm 100steps(1step=0.02mm) |
| Detector: | Puessur down. crimp-mis. strip error Wire Presence Wire Load Wire Parameter Error Etc. |
